LC/Upc-Sc/Upc-Om-Dx Fiber Optic Patch Cord with RoHS

Basic Info

Material Shape	Round Wire
Allowed Tensile Strength	<100N
Core	Multicore
Certification	RoHS, CE
Brand	OEM
Sheath Material	PVC
Length	1m, 2m, 5m, 10m, 20m or Customized
Dia.	0.9, 2.0, 3.0mm
Insertion Loss	<0.3dB
Return Loss	≥30dB
Repeat Insertion Time	1000
Working Temperature	-40ºC~+70ºC
Transport Package	PE
Origin	China
Production Capacity	730000PCS/Year

Packaging & Delivery

Package size per unit product 1.00cm * 1.00cm * 1.00cm Gross weight per unit product 1.000kg

Product Description

Product Description

Low insertion loss and high return loss;Three end-surface polishing methods: PC, UPC, APC;
Mechanical durability: more than 500 times of use;
Cable materials compliant with OFNR and OFNP flame retardant ratings;
Low insertion loss

Specifications

Connector Type	LC UPC to SC UPC
Fiber Mode	OM4 50/125μm
Wavelength	850/1300nm
Insertion Loss	≤0.3dB
Return Loss	≥30dB
Min. Bend Radius (Fiber Core)	7.5mm
Min. Bend Radius (Fiber Cable)	20/10D (Dynamic/Static)
Attenuation at 850nm	3.0 dB/km
Attenuation at 1550nm	1.0 dB/km
Fiber Count	Duplex
Cable Diameter	2.0mm
Cable Jacket	PVC
Polarity	A (Tx) to B (Rx)
Operating Temperature	-20~70ºC
Storage Temperature	-40~80ºC

Detailed Photos

For More Products, Please Click the Picture As Below:

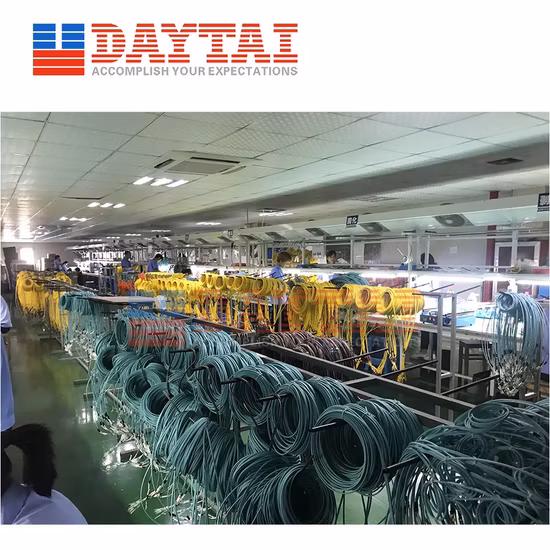

Company Profile
