LC/Upc-Sc/Upc-Sm-Dx Single Mode Fiber Optical Patch Cords

LC/Upc-Sc/Upc-Sm-Dx Single Mode Fiber Optical Patch Cords

Overview Package size per unit product 1.00cm * 1.00cm * 1.00cm Gross weight per unit product 1.000kg Product Descriptio
Basic Info
Material Shape Round Wire
Allowed Tensile Strength <100N
Core Multicore
Certification RoHS, CE
Brand OEM
Sheath Material PVC
Length 1m, 2m, 5m, 10m, 20m or Customized
Dia. 2.0mm
Insertion Loss ≤0.3dB
Return Loss ≥50dB
Repeat Insertion Time 1000
Working Temperature -20~70°c
Transport Package PE
Origin China
Production Capacity 730000PCS/Year
Packaging & Delivery
Package size per unit product 1.00cm * 1.00cm * 1.00cm Gross weight per unit product 1.000kg
Product Description

LC/Upc-Sc/Upc-Sm-Dx Single Mode Fiber Optical Patch Cords

Product Description

Low insertion loss and high return loss;Three end-surface polishing methods: PC, UPC, APC;
Mechanical durability: more than 500 times of use;
Cable materials compliant with OFNR and OFNP flame retardant ratings;
Low insertion lossSpecifications

Connector TypeLC UPC to SC UPC
Fiber GradeG.657.A1 (Compatible with G.652.D)
Fiber ModeOS2 9/125μm
Wavelength1310/1550nm
Insertion Loss≤0.3dB
Return Loss≥50dB
Min. Bend Radius (Fiber Core)10mm
Min. Bend Radius (Fiber Cable)10/5D (Dynamic/Static)
Attenuation at 1310nm0.36 dB/km
Attenuation at 1550nm0.22 dB/km
Fiber CountDuplex
Cable Diameter2.0mm
Cable JacketPVC
PolarityA (Tx) to B (Rx)
Operating Temperature-20~70ºC
Storage Temperature-40~80ºC

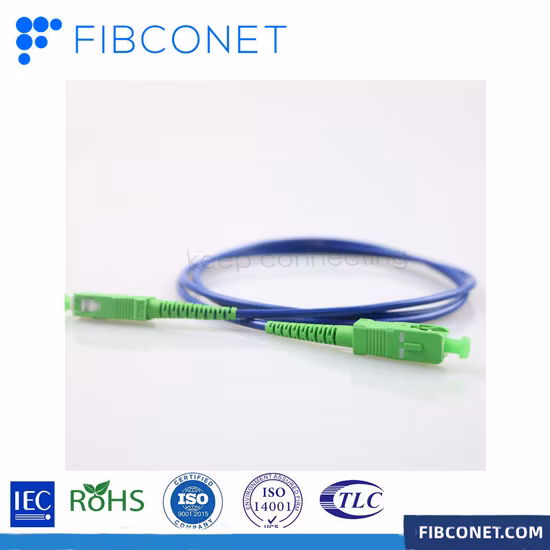

Detailed Photos
For More Products, Please Click The Picture.


Company Profile

LC/Upc-Sc/Upc-Sm-Dx Single Mode Fiber Optical Patch Cords

F A Q1. Are you real manufacturer?Yes, our factory is located in Shenzhen, China, 10 Years experience.2. Can you provide the samples?Yes, Samples free of charge, but freight necessary to bear yourself,3. What is the delivery time?It takes 3-5 days for the samples, 7-15 days for the bulk production. It depends on the order quantity.4. Can you supply customized products and logo? (OEM/ODM)Yes, we can provide the OEM/ODM, please feel free to let us know your requirements.5.Do you have warranty for your products?Yes, 1-3 Years.
