Excellent Mechanical Endurance Standard 0.9mm Simplex Buffered Optical Fiber Cable Pigtail for Patch Panels

Excellent Mechanical Endurance Standard 0.9mm Simplex Buffered Optical Fiber Cable Pigtail for Patch Panels

Overview Product Parameters Technical parameters Ordering information Product Description Product profile Fiber optic pi
Basic Info
Application Communication
Type Multi-mode Fiber
Connection Structure LC,Sc,FC,St
Material Shape Round Wire
Allowed Lateral Pressure 100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength 100N<1000N
Core Multicore
Certification CE
Brand OEM
Sheath Material PVC
Cable Outer Diameter Ψ0.9mm,Ψ2.0mm or Customer Specified
Cable Length 1m,3m,5m,15m,25m,30m or Customer Specified
Branch Count 1-12
Outer Jacket Material PVC, LSZH
Outer Jacket Color Refer to Chromatogram
Connector Type LC,Sc,St,FC
Polish Type Upc,APC
Marking &Package Per Customer′s Request or Factory Standard
Transport Package Wooden-Drum
Trademark Dierite
Origin Changzhou Jiangsu China(Mainland)
Product Description

Product Parameters

Technical parameters

CharacteristicItemTest conditionSingle mode fiberMultimode Fiber
Optical propertyInsertion Loss (dB)1310nm(SM);850nm(MM)<0.3dB-
Return Loss (dB)1310nm(SM);850nm(MM)->45dB(SM)>35dB(MM)
Mechanical testVibration test10-60Hz, 1mm full amplitude△IL<0.2dB△RL<5dB
Plug service lifeAbove 1000times△IL<0.2dB△RL<5dB
Tensile strength>50N△IL<0.2dB△RL<5dB
Environmental propertyHigh temperature test+85°C, 96hs△IL<0.2dB△RL<5dB
Cryogenic test-40°C, 96hs△IL<0.2dB△RL<5dB
Damp heat test+40°C,90-95%RH,96hs△IL<0.2dB△RL<5dB

Ordering information
Cable outer diameterΨ0.9mm,Ψ2.0mm or customer specified
Cable length1m,3m,5m,15m,25m,30m or customer specified
Fiber typeB1.3=G652D, B6A1=G657A1, B6A2=G657A2, A1=50/125, A1b=62.5/125, OM3= Maxband*150, OM3=Maxband*300, OM4=Maxband*550, OM5=Maxband*550
Branch count1-12
Outer jacket materialPVC, LSZH
Outer jacket colorRefer to Chromatogram
Connector typeLC,SC,ST,FC
Polish typeUPC,APC
Marking &PackagePer customer's request or factory standard

Product Description

Product profile

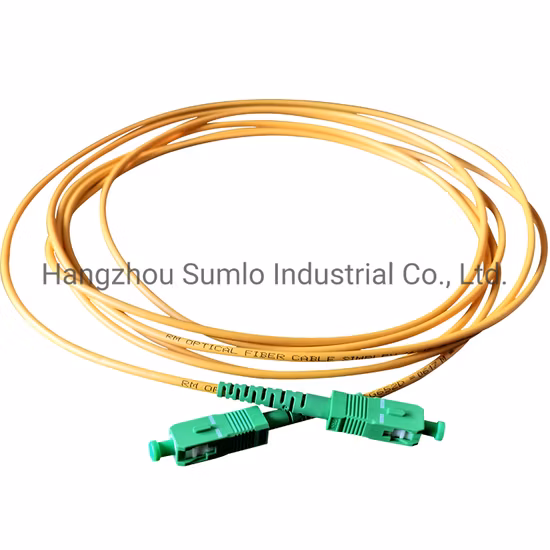

Fiber optic pigtail is a piece of fiber optic cable with only one fiber optic connector; it is typically used to link with fiber optic equipment. The connector side is mainly in charge of the connections while the other side is melted together with fiber glasses to achieve minimum insertion loss.We provide a full range of fiber optic pigtails for both single mode and multimode.


Characterstic•Low insertion loss, high return loss.•Excellent mechanical endurance.•High credibility and stability.•Good in repeatability and exchangeability.•100% Insertion, Return Lossz End Face and Interference inspection.

•Telcom and datacom application.•Patch panels, wall boxes, ODFs and splice cassettes.•Easy strip pigtails for on-site installation.•Supports high-speed multi-channel video, data and voice services in metropolitan and access networks. •ATM, SONET and WDM.

Detailed Photos


Company Profile

Jiangsu Dierite Optoelectronics Technology is a professional optical fiber cable manufacturer with own R&D center; marketing center and production base, located in Changzhou Jiangsu China, close to Shanghai and Ningbo port. Our company is committed to provide first-class solutions and OEM services for operaton system integrators and Integrated wiring provider Products cover indoor and outdoor fiber optic cable, fiber optic patch cord, PLC splitter; adaptecattenuatocetc.

Dierite was established in 2010, now our workshop area is about 5000 square meters, and has more than 150 workers. We are also a national high-tech enterprises with ISO 9001,CE/RoHS and many Utility Model Patent Certificates. Our factory controls the quality constantly and strictly in order to give the best products to the users.Products have been widely used in telecommunications, broadband, and network industry and are exported to Asia, North America, South America, Europe and other places. As an original manufacturer; we will accelerate the development of the global 5G era with the most stringent quality and the most competitive price.
